COPRINOX SSR2000 SS316L 2800lt reactor
Featured
No longer available
COPRINOX SSR2000 SS316L 2800lt reactor
Location:Guardamiglio, Italy
Description

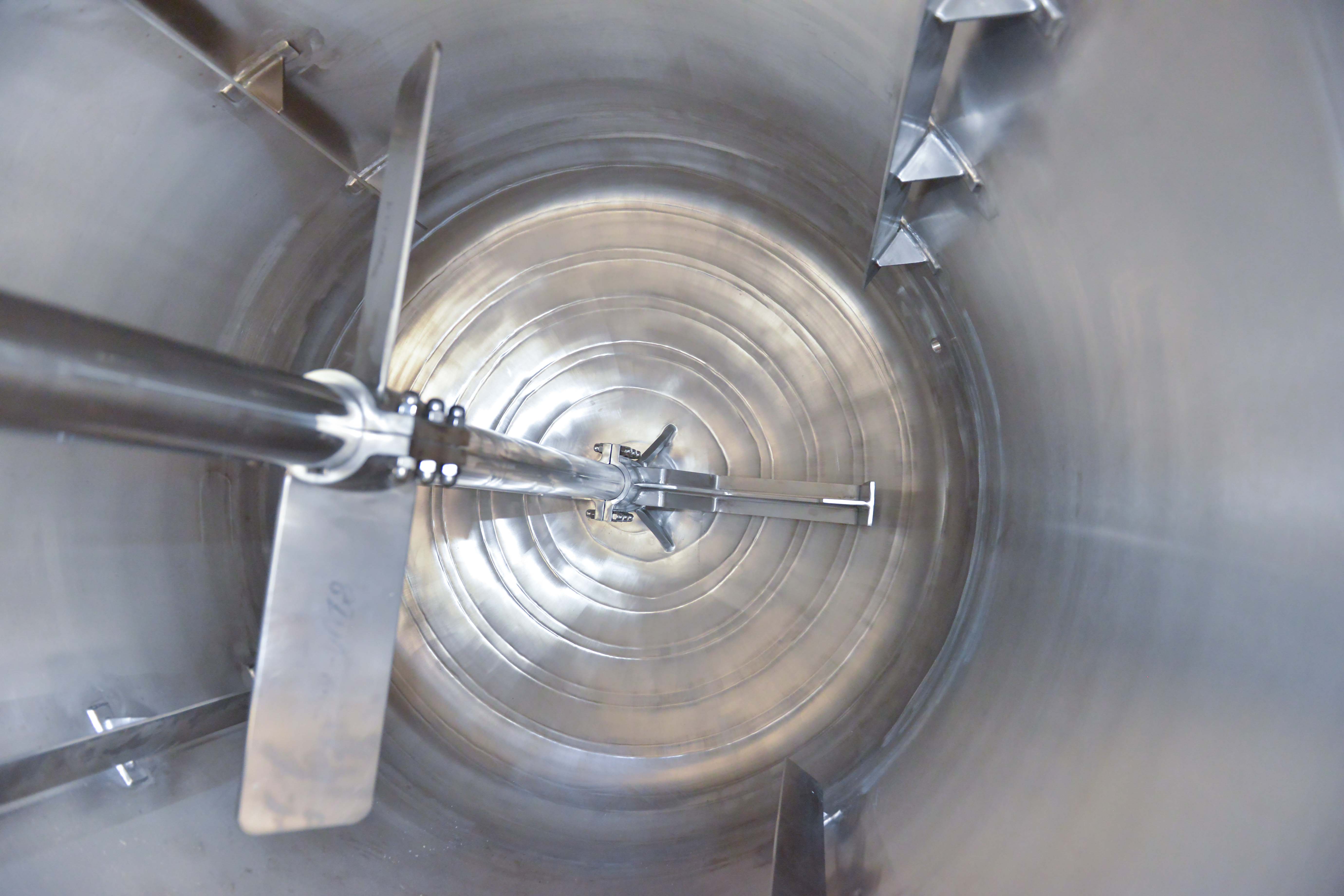

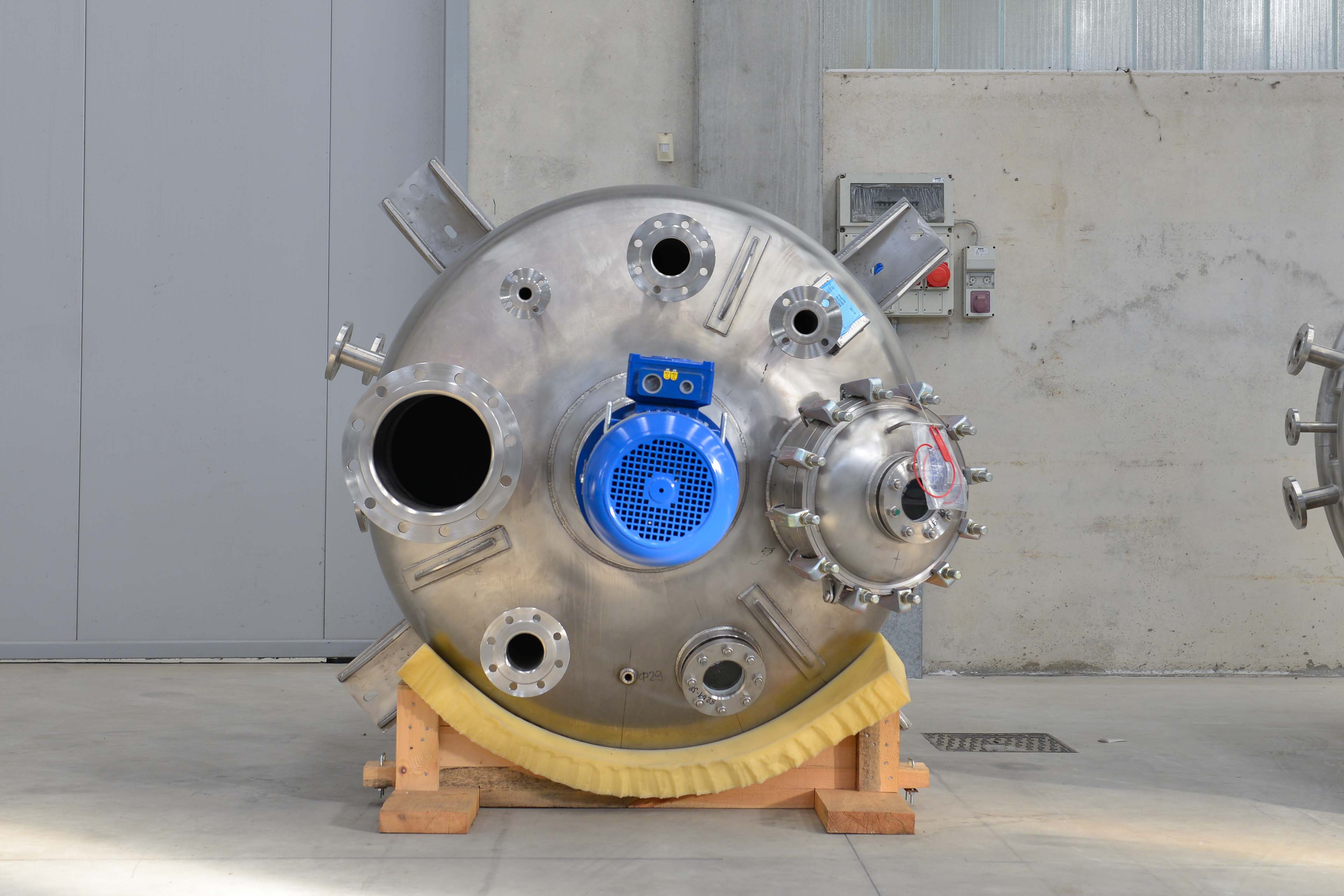

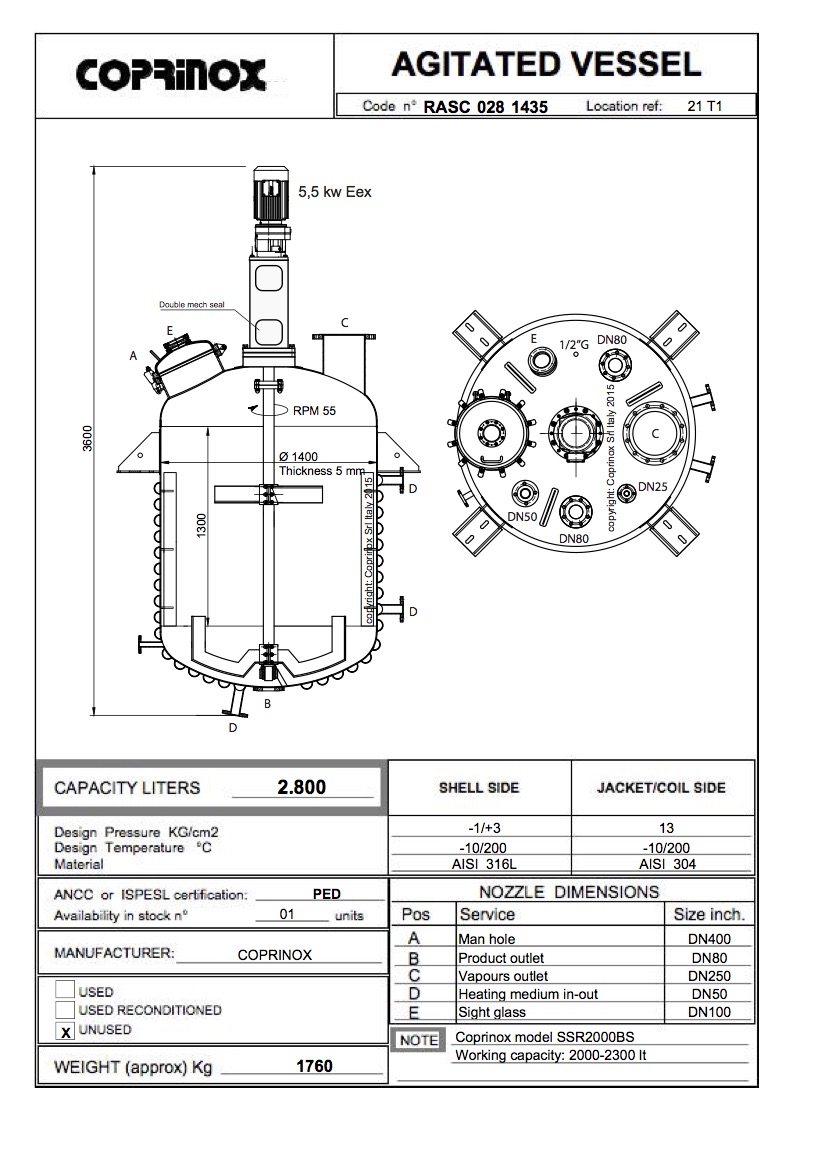

BRAND NEW 2.800 lt SS316L reactor (2.000 lt working volume) with limpet coil jacket, diameter 1400 mm, elliptical top and bottom bottom, manufacturer COPRINOX. Internal design pressure -1 / + 3 Bar, internal design temperature -10/200° C, jacket / half-pipe design pressure 13 Bar, jacket / half-tube design temperature -10/200 ° C, PED certification. N°4 stainless steel support saddles.
Specifications
| Manufacturer | COPRINOX |
| Model | SSR2000 |
| Year | 2021 |
| Condition | New |
| Stock Number | RASC 028 1435 |
| Capacity | 2800 lt |
| Internal pressure | -1 + 3 bar |
| Internal temperature | -10 + 200 ° C |
| Half-pipe pressure | +13 bar |
| Half pipe temperature | -10 + 200 ° C |
| Inner material | SS316L |
| Half pipe material | SS304L |
| Diameter | 1400 mm |
| Power Kw | 5,5 |
| Turns agitator | 55 rpm |
| certification | PED |
| Total weight | 1760 Kg |
